NMR20 TESLAMETER
Nuclear Magnetic Resonance Teslameter
​
CAYLAR offers a magnetic field measurement by Nuclear Magnetic Resonance (NMR) which allows an absolute measurement of the magnetic field, with a resolution of 10 nT (0.1 G) without temperature influence. NMR probes associated with the NMR20 have the particularity of having a large measurement range with a dynamic range of 5 and measure low fields from 140 G (14 mT) up to 13 T
NMR20 Precision Teslameter
(NMR Gaussmeter)
The NMR20 Teslameter measures magnetic fields using the principle of nuclear magnetic resonance (NMR).
​
This is the most precise technology for measuring an absolute magnetic field value.
Features
​
-
Size: 19” 2U P350
-
Range: 14mT - 13 T
-
Resolution: 10 nT (0.1 mG)
-
Absolute Precision: < 0.5μT
-
Internal Clock Stability: ±1 ppm (0°C-70°C)
-
1st Year Stability: <1 ppm
-
Stability After 1 Year: <±0.2 ppm / year
-
Required Homogeneity: <2000 ppm/cm (1 Tesla)
-
NMR Signal Tracking Time: < 1 s (with HALL)
-
Channels: Up to 256
-
Interfaces: RS232, USB, Ethernet
-
10MHz Clock Reference: External in & Internal out
-
Analog Output for Magnetic Field Regulation: ±10V / 1 µV resolution
NMR Probes
CAYLAR has developed several probes to meet the maximum needs:
​
​
Standard Probes:
-
Optimized for the best signal-to-noise ratio with a high dynamic range.
-
Low sensitivity to gradient (typically between 1000 and 2000 ppm/cm).
-
Miniaturized Probes
​
Probes for Radioactive Environments:
-

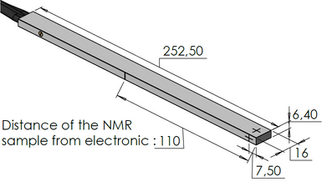

No electronic components within 11cm of the NMR sample.
-
For highly radioactive environments, no electronic components within 40cm of the NMR sample.
​
Specific Probes Made on Request:
-
Gradient sensitivity.
-
Probe size and shape.
-
Measurement range.
-
Cable length (up to 16m instead of 2.5m) in one or more lengths with extension cables.
Probe Models
Highlights
Precision
< 0.5 µT absolute accuracy 10 nT reading resolution
Large measuring range
From 14 mT to 13 T with a large dynamic range (< x5) 90 mT to 2.1 T covered by 2 probes 140 mT to 3 T covered by 2 probes
Fast search
Integrated HALL sensor for fast search Less than 1s to lock a NMR signal
High gradient tolerance
High Tolerance to magnetic field gradients > 2000 ppm/cm at 1 T
NMR Regulation
Embedded magnetic field control with analog output.
